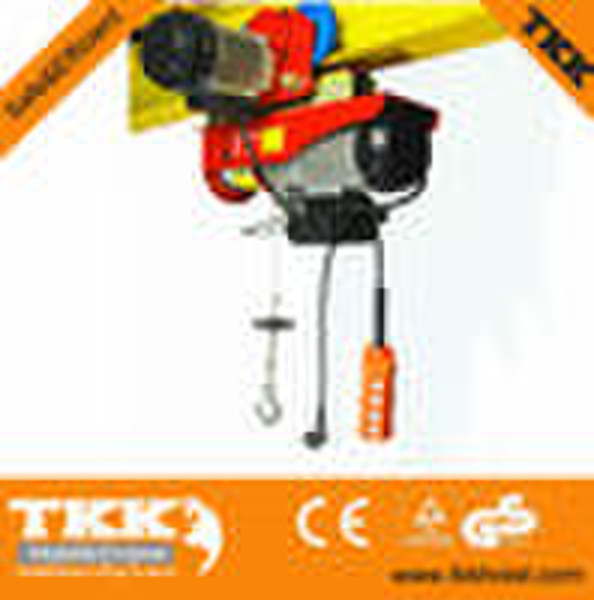

Electric Hoist

PA200 electric hoist Key Specifications/Features: • The emergency stop switch• Upper limit function• Thermal protection terminal• Protection class IP54• Insulation class B• Group of mechanisms M1• Work Duty: S3-25%-10min• Rated Volt: 220/230V 50Hz• Rated Current: 2.0A• Input Power: 480W• Lifting Weight: 100kg (Single-line), 200kg (Double-line)• Lifting Height: 12m (Single-line), 6m (Double-line)• Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)• Diameter of wire rope: 3.0mm• Tensile strength of wire rope ≥ 1870N/mm2Logistic Information:• Packing pattern: 1pc per color inner box, 2pcs per master carton• Packing Dimension: 38x32x25cm• G.W./N.W.: 23/22kg• Qty /1x20’FCL: 1650pcsPayment Details:• Payment terms: L/C at sight or T/T• MOQ: 200 PCS MixDelivery Details:• FOB Ports: Tianjin port /Shanghai port• Lead time: 30 to 50 daysHarmonization System (HS) Code:• 8425 1100electric hoist:NameModelLifting weight(kg) s/d hookLifting speed(m/min)s/d hookLifting height(m)s/d hookRate volt(v)Input power (w)Rope diameter(mm)Package(cm)Electric Hoist SeriesPA200100/20010/512/6220/230/24050/60Hz480338*32*24PA300150/30010/512/6600338*32*24PA400200/40010/512/6950445*34*27PA500250/50010/512/61020445*34*27PA600300/60010/512/61200445*34*27PA700350/7008/412/61250545*34*27PA800400/8008/412/61300554*24*31PA1000500/10008/412/61600654*24*31
